2D & 3D Floor Plans
Interactive floor plans with pinpoint inspection findings. Plus full 3D walkthroughs to explore every room remotely.
Book Now — From $653D Walkthrough

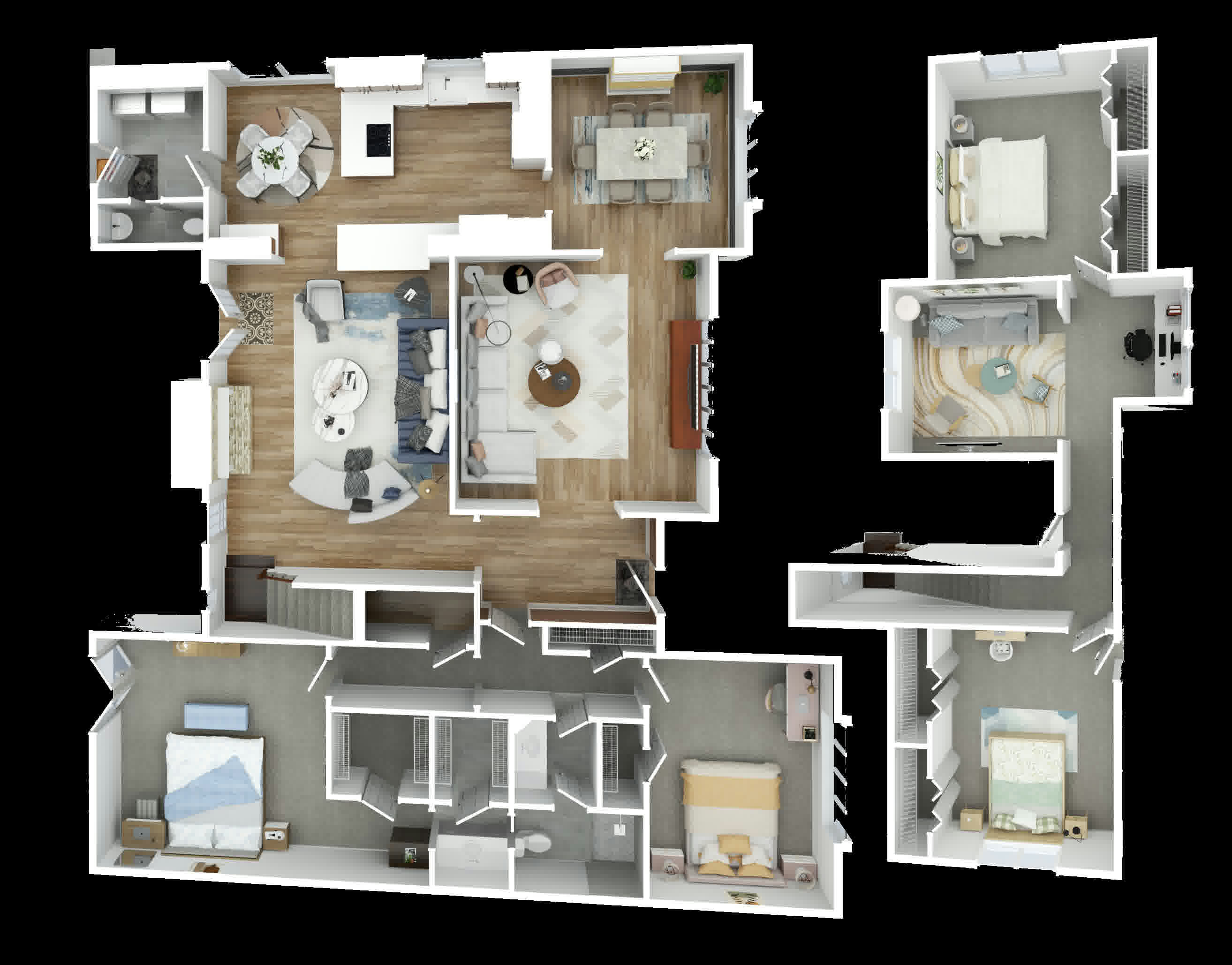

3D Floor Plan
2D Floor Plan

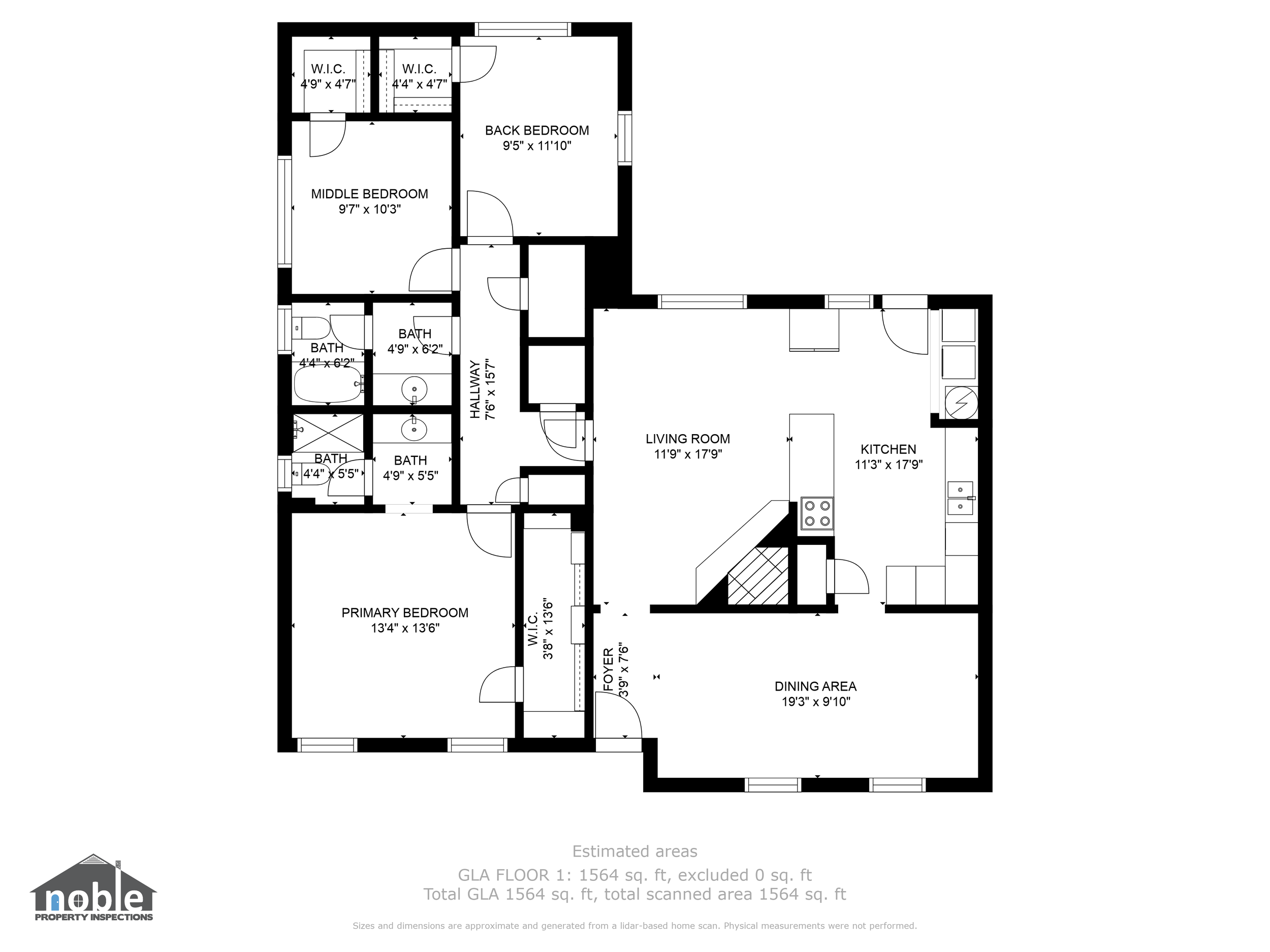

What is a 2D Floor Plan?
A 2D floor plan is a scaled diagram of your home's layout as viewed from above. It shows wall locations, room dimensions, door and window placements, and overall square footage. During an inspection, we overlay findings directly on the floor plan so you can see exactly where each issue was identified.
Why Add a Floor Plan to Your Inspection?
- Verify the home's actual square footage against listing claims
- See exactly where each inspection finding was located
- Useful for renovation planning and furniture layout
- Digital delivery included with your inspection report
Pricing
2D floor plan add-on. Price may vary based on home size. Full 3D walkthrough available from $245.
Who Uses Noble Floor Plan Services
Accurate floor plan drawings serve a wide range of professional and personal needs. Noble Property Inspections provides as-built measurements and digital drawings for real estate listings, renovation planning, permit applications, insurance documentation, and estate purposes.
- Real estate agents: accurate square footage and room dimensions for MLS listings
- Homeowners: renovation planning with precise room measurements
- Contractors: as-built drawings for permit applications and scope-of-work bids
- Insurance adjusters: property documentation for claims and underwriting
- Estate attorneys: property documentation for estate planning and probate
Our floor plans are created using laser measurement technology and delivered as scaled digital drawings in PDF format. Typical turnaround is 24-48 hours from the on-site measurement appointment. Floor plan measurement can be added to any home inspection or scheduled as a standalone service.
Markets We Serve
Noble Property Inspections provides 2D and 3D floor plan services across 14 markets in 6 states. Click your city to learn more.
